High Lift Scissor Truck HB series
▲ World class quality and performance.
▲ Single stage cylinder.
No decrease of capacity.
No risk of leakage.
No dangerous dropping of second stage cylinder.
▲ Ergonomic design handle.
Simple and comfortable operation.
▲ Improved safety.
Automatic activation of self-adjusting stabilizers when lifting loads higher than 400mm for maximum stability and optimum braking.
▲ HB1056M/1068M-Manual.
Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
▲ HB1056E/EN, HB1068E/EN-EIectric.
▲ Easy handling
The compact structure with the battery and power unit positioned between body and lifting cylinder resulting in a low centre of gravity and excellent maneuverability.
▲ Flexibility
Can work manually when the battery has been charged.
▲ Charger
10A/12V separate, or 6A/12V Built-in.
▲ Conforms to EN1757-4 and EN1175.
Feature:
QuickLift to save time and energy.
All models can also be used as a standard pallet truck.

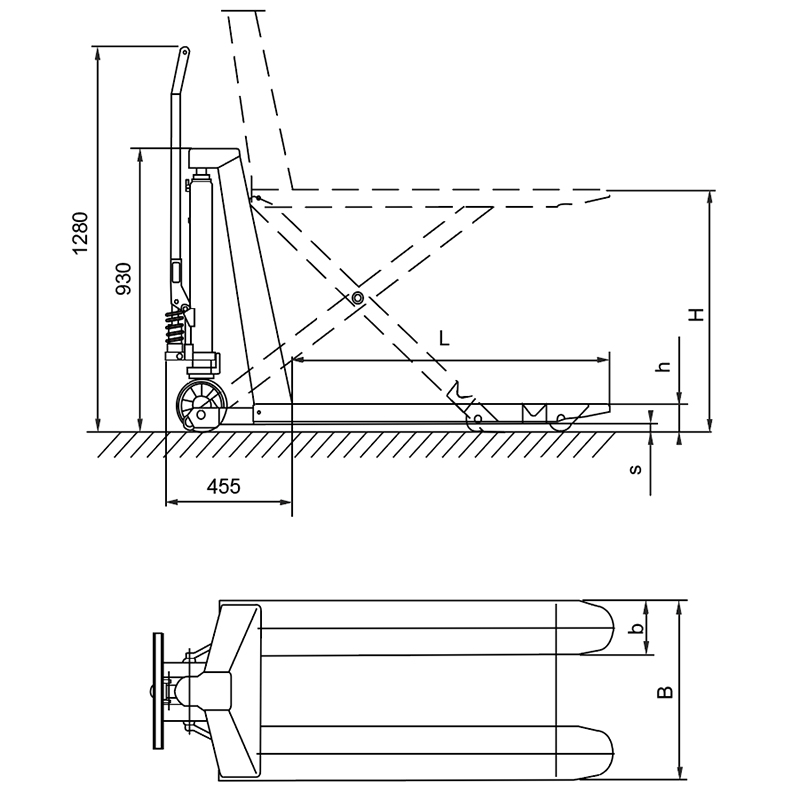

| Model | HB1056M | HB1068M | HB1056E | HB1068E | HB1056EN | HB1068EN | |
| Type | Manual | Electric | Electric (built in charger) | ||||
| Capacity | (kg) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Max. Fork Height | H (mm) | 800 | 800 | 800 | 800 | 800 | 800 |
| Min. Fork Height | h (mm) | 85 ± 2 | 85 ± 2 | 85 ± 2 | 85 ± 2 | 85 ± 2 | 85 ± 2 |
| Fork Width | B (mm) | 560 | 680 | 560 | 680 | 560 | 680 |
| Fork Length | L (mm) | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 |
| Ground Clearance | s (mm) | 20 | 20 | 20 | 20 | 20 | 20 |
| Front Load Roller | (mm) | Ø75x75 | Ø75x75 | Ø75x75 | Ø75x75 | Ø75x75 | Ø75x75 |
| Steering Wheel | (mm) | Ø180x50 | Ø180x50 | Ø180x50 | Ø180x50 | Ø180x50 | Ø180x50 |
| Pump Strokes to Max. Height without / with Rated Load |
28/62 | 28/62 | — | — | — | — | |
| Lifting Time, without / with Rated Load | (sec) | — | — | 11/19 | 11/19 | 11/19 | 11/19 |
| Battery | (Ah/V) | — | — | 70/12 | 70/12 | 70/12 | 70/12 |
| Battery Charger | — | — | Separate 10A/12V | Built-in 6A/12V | |||
| Net Weight (without Battery) | (kg) | 128 | 133 | 158 | 163 | 159 | 164 |
